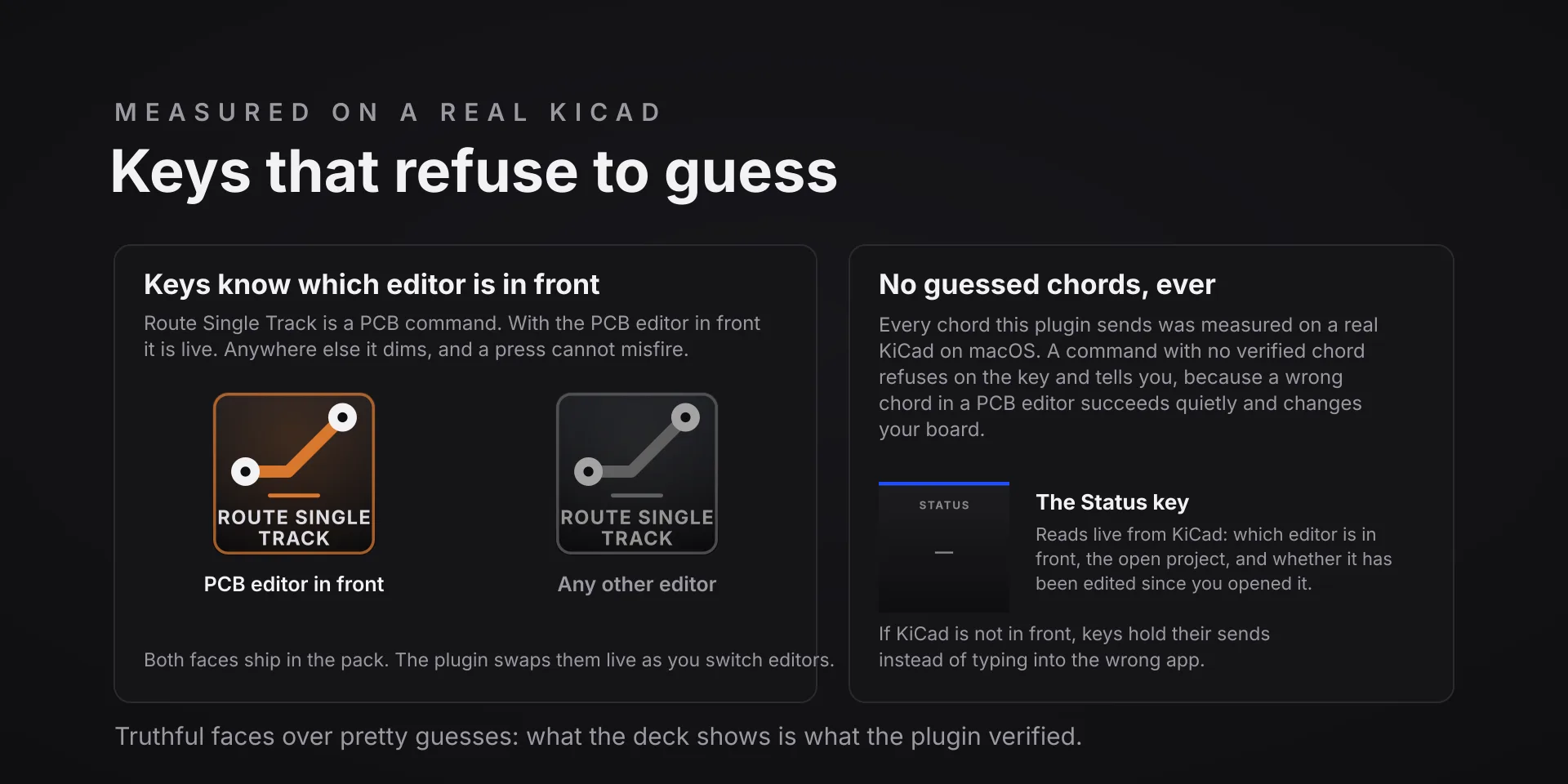

A wrong chord in a PCB editor succeeds quietly and changes your board, so a command with no verified macOS chord refuses on the key and says so rather than firing. Commands proven in only one editor are gated to that editor and dim everywhere else.

235commands
23categories
7dials
6bundled profiles

Download Now

On the Elgato Marketplace

What it does

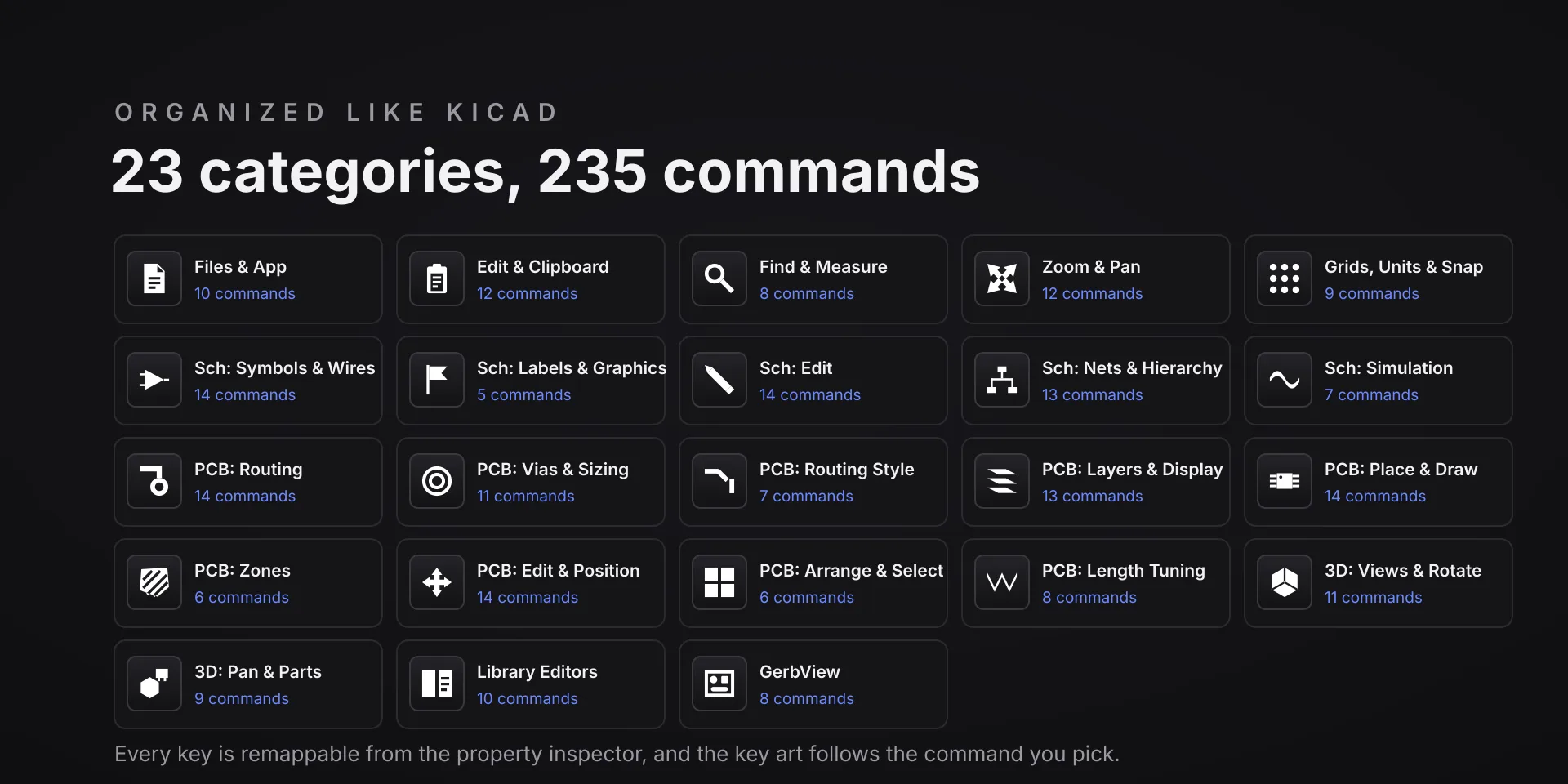

235 commands across 23 remappable category keys covering the schematic editor, the PCB editor, the 3D viewer, the library editors and GerbView. Drop a category key on the deck, pick the command in the property inspector, and the key takes that command's face.

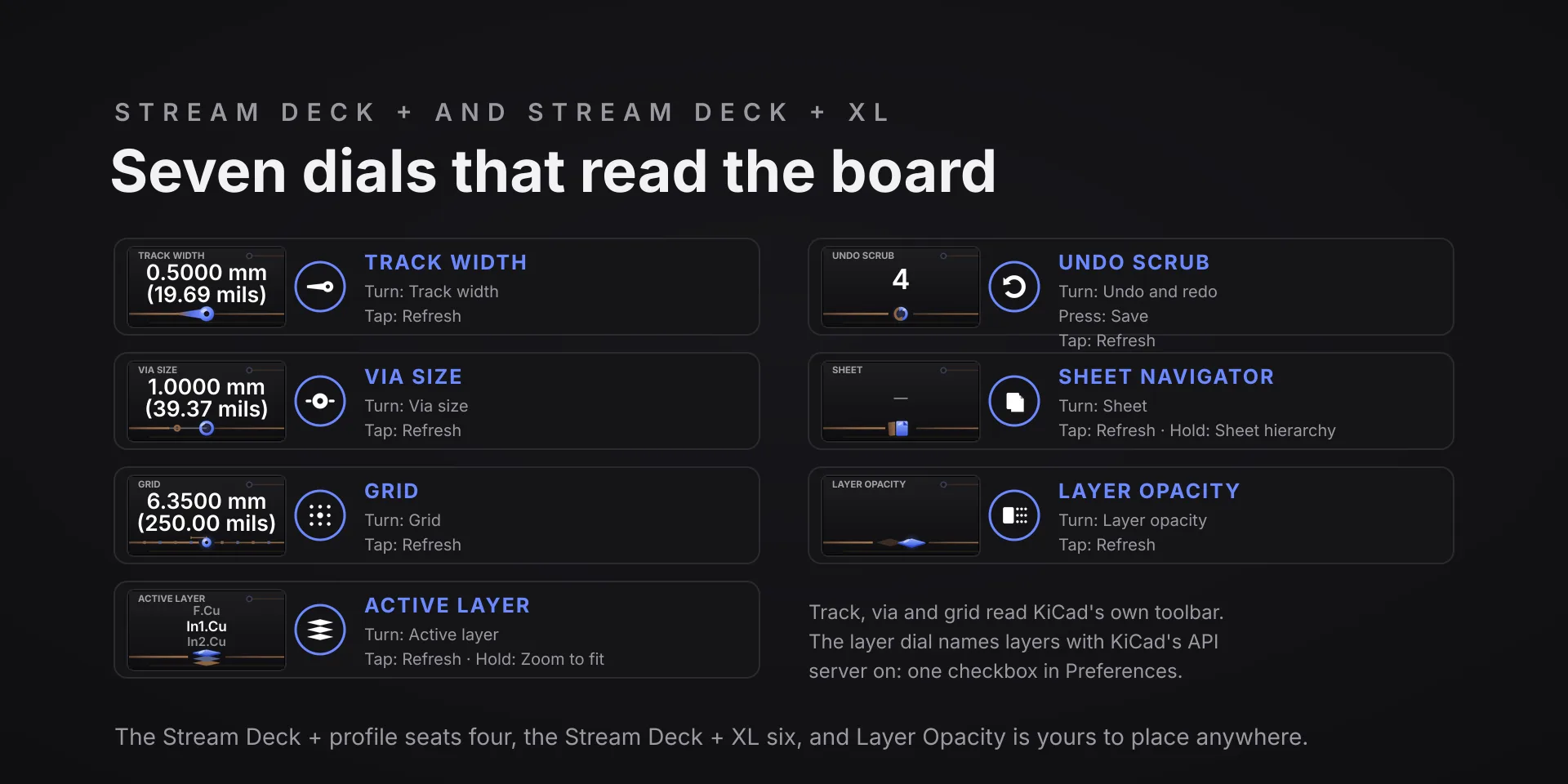

Seven dials: track width, via size, grid, active layer, undo scrub, sheet navigator and layer opacity. The Stream Deck + seats four and the Stream Deck + XL six, and each dial paints its own face on the touch strip.
Track width, via size and grid read their real value off KiCad and show a plain dash when there is nothing to read, never a guessed number. A stale width displayed as current is the same lie as a wrong one.

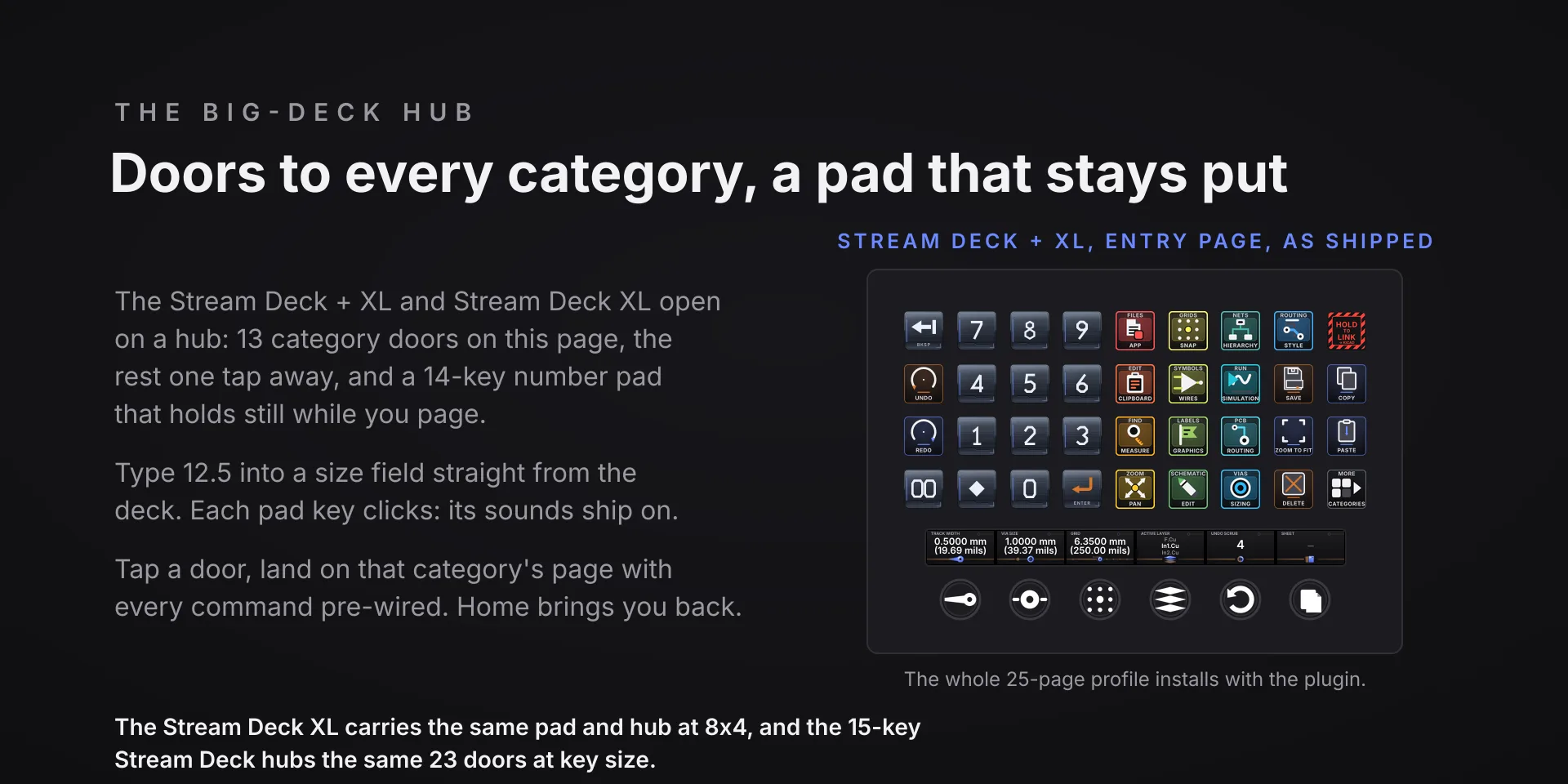

The Stream Deck + XL and Stream Deck XL hub pages carry a 14-key number pad that stays put while you page: digits, 00, decimal point, Backspace and Enter, typed straight into whatever size field KiCad has open.

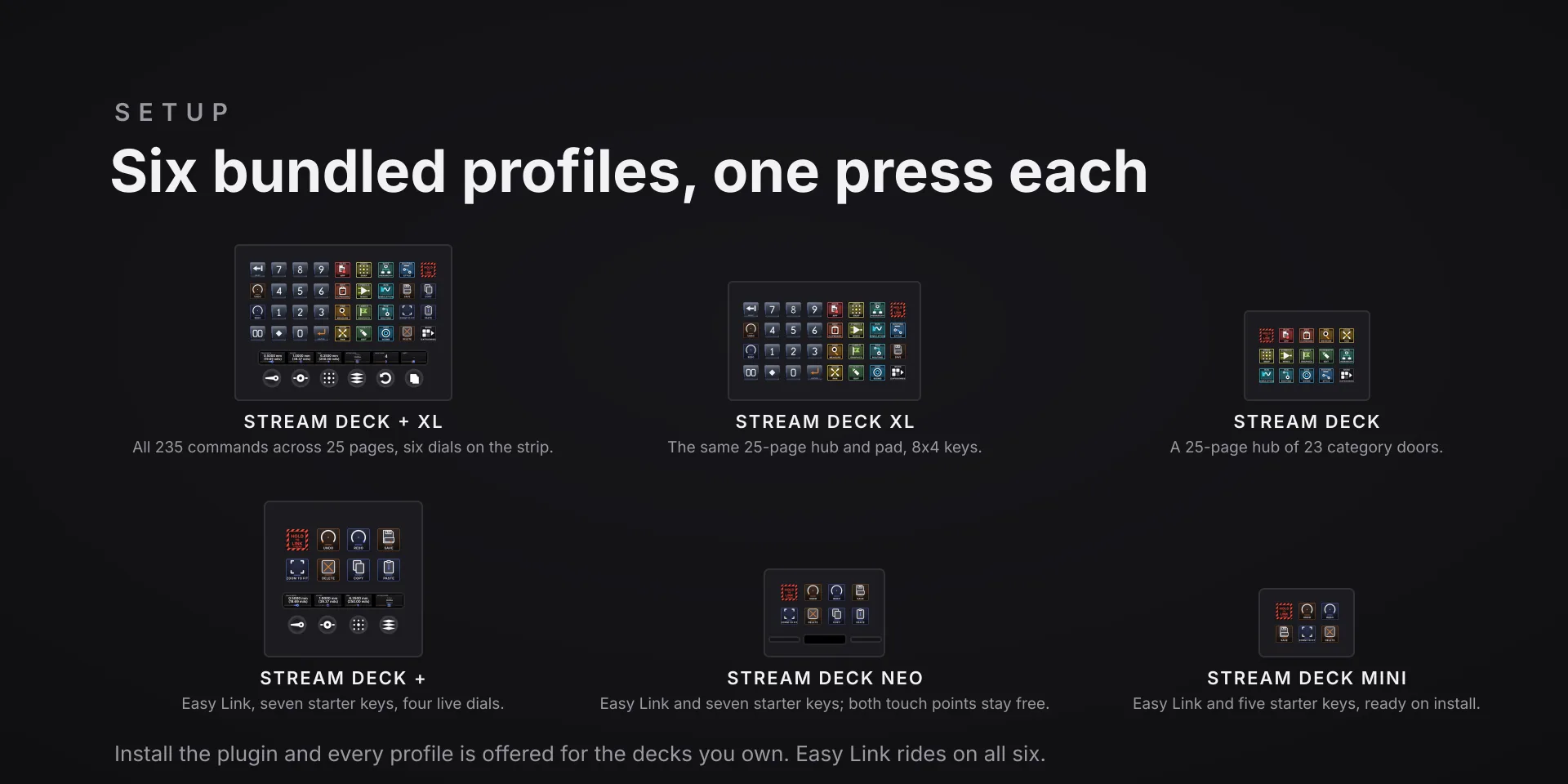

Six bundled profiles with Easy Link on every one. The 15-key Stream Deck gets a 25-page hub of category doors. A Status key shows which editor is in front, the open project, and whether it has been edited since you opened it.

What you need

macOS 13 or later, Stream Deck software 6.9 or newer, and KiCad 10, built and measured against KiCad 10.0.5. This is a macOS listing. The Windows edition is KiCad Hotkeys.

Download Now See all 36 plugins
