Cloud CAD · Stream Deck plugin

Onshape Hotkeys

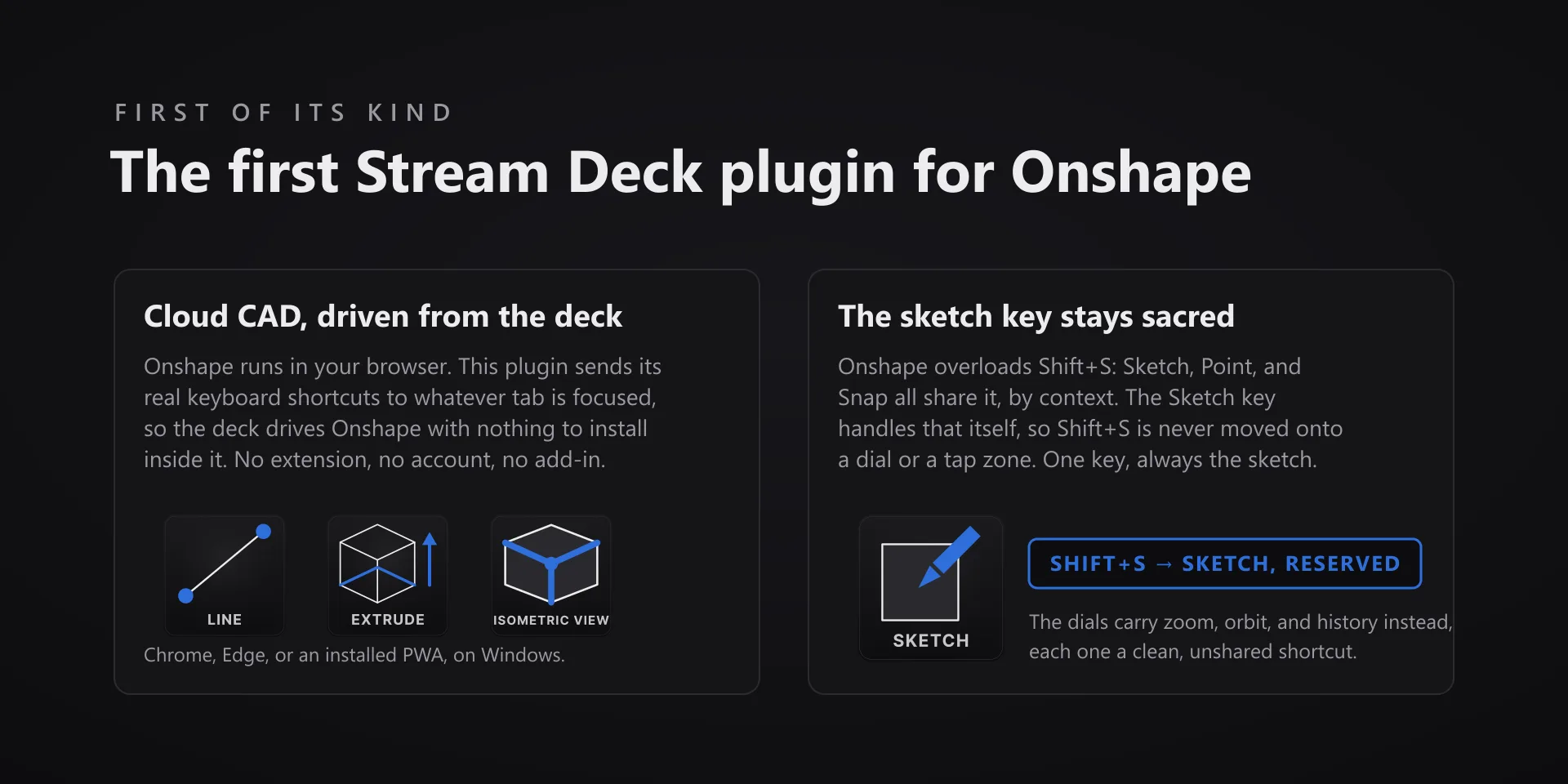

CAD in a browser tab is easy to lose your place in. The deck names the document and tab you are in, and drives the modeling from there.

104commands

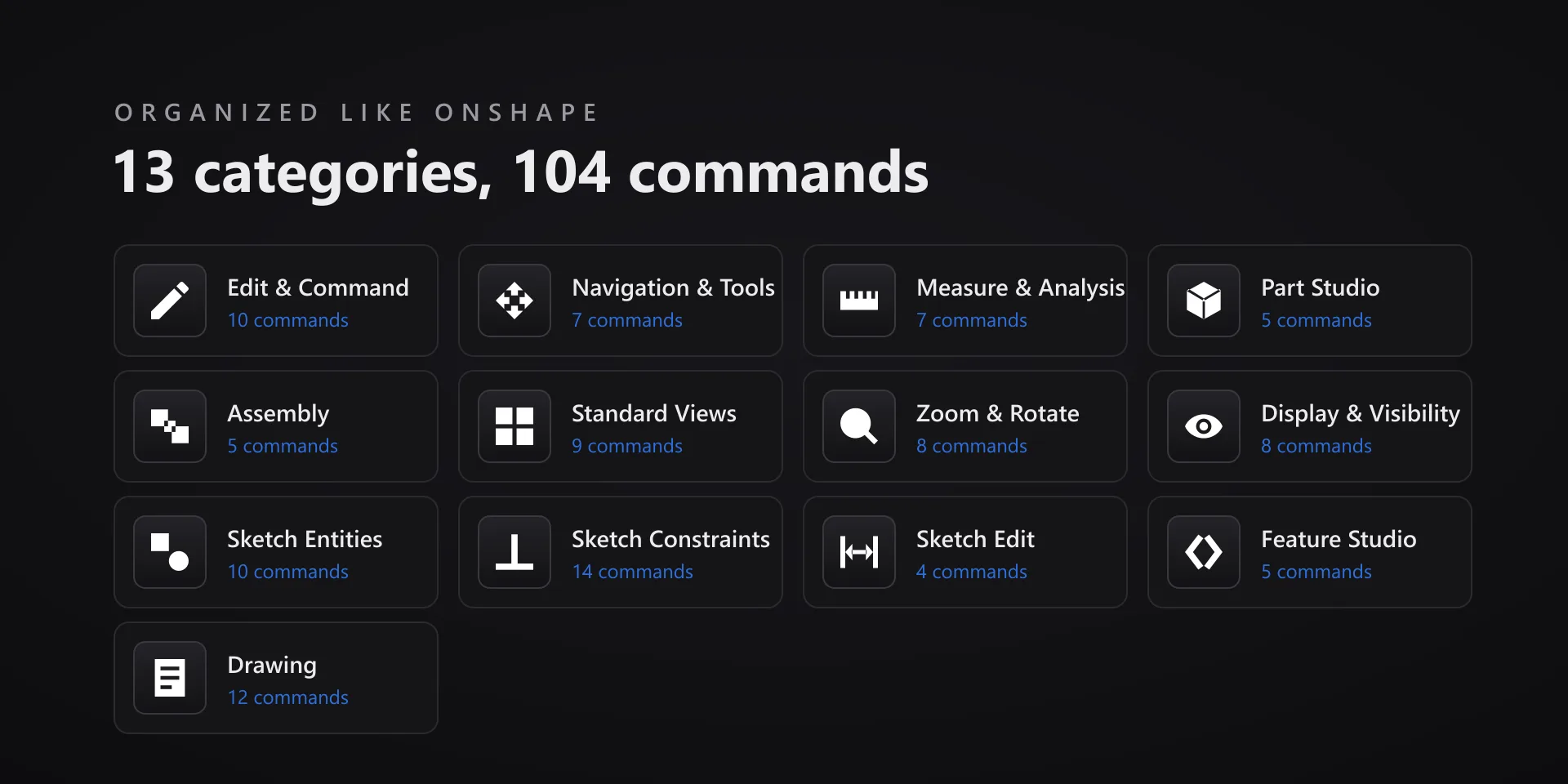

13categories
4dials

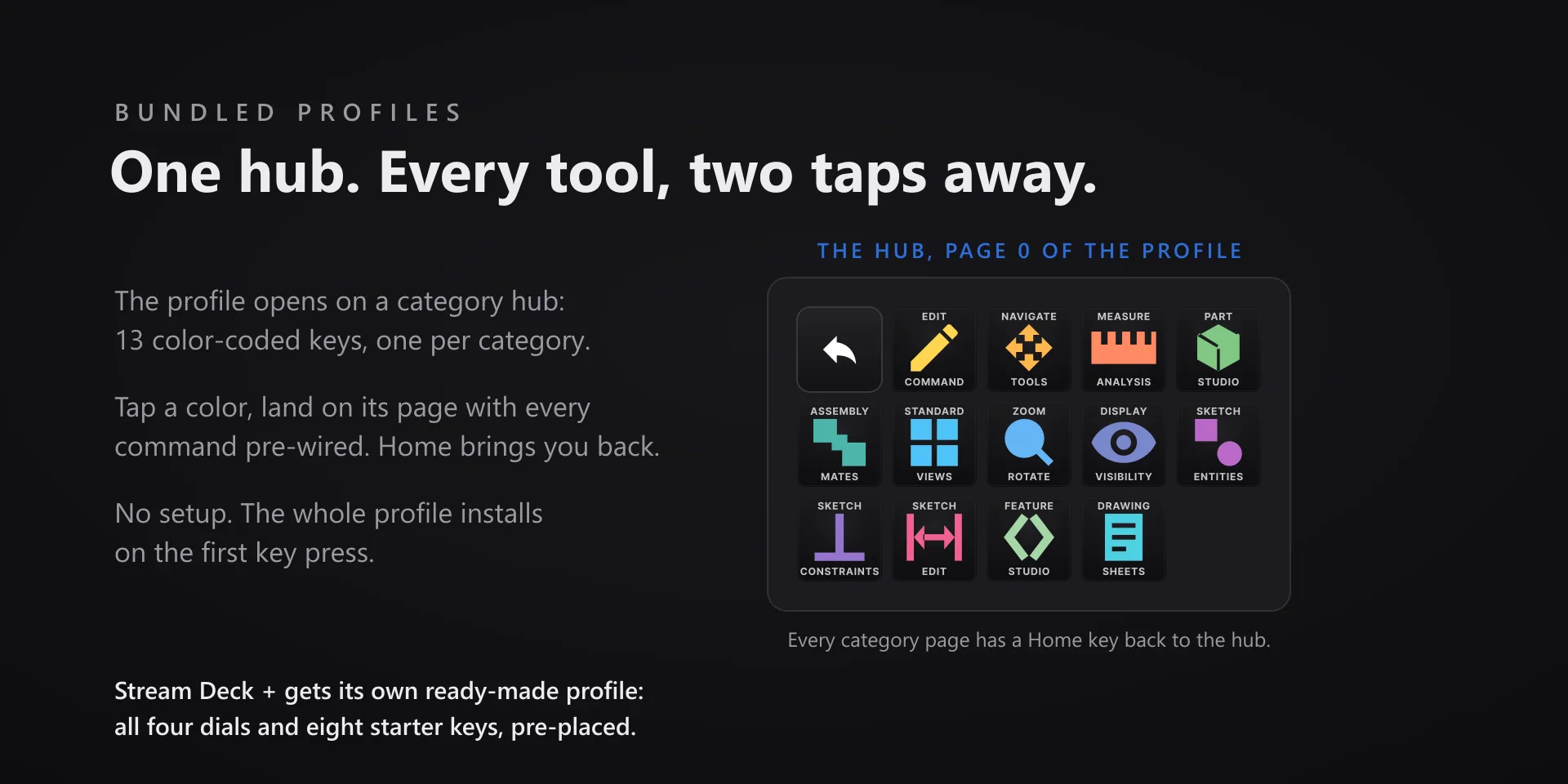

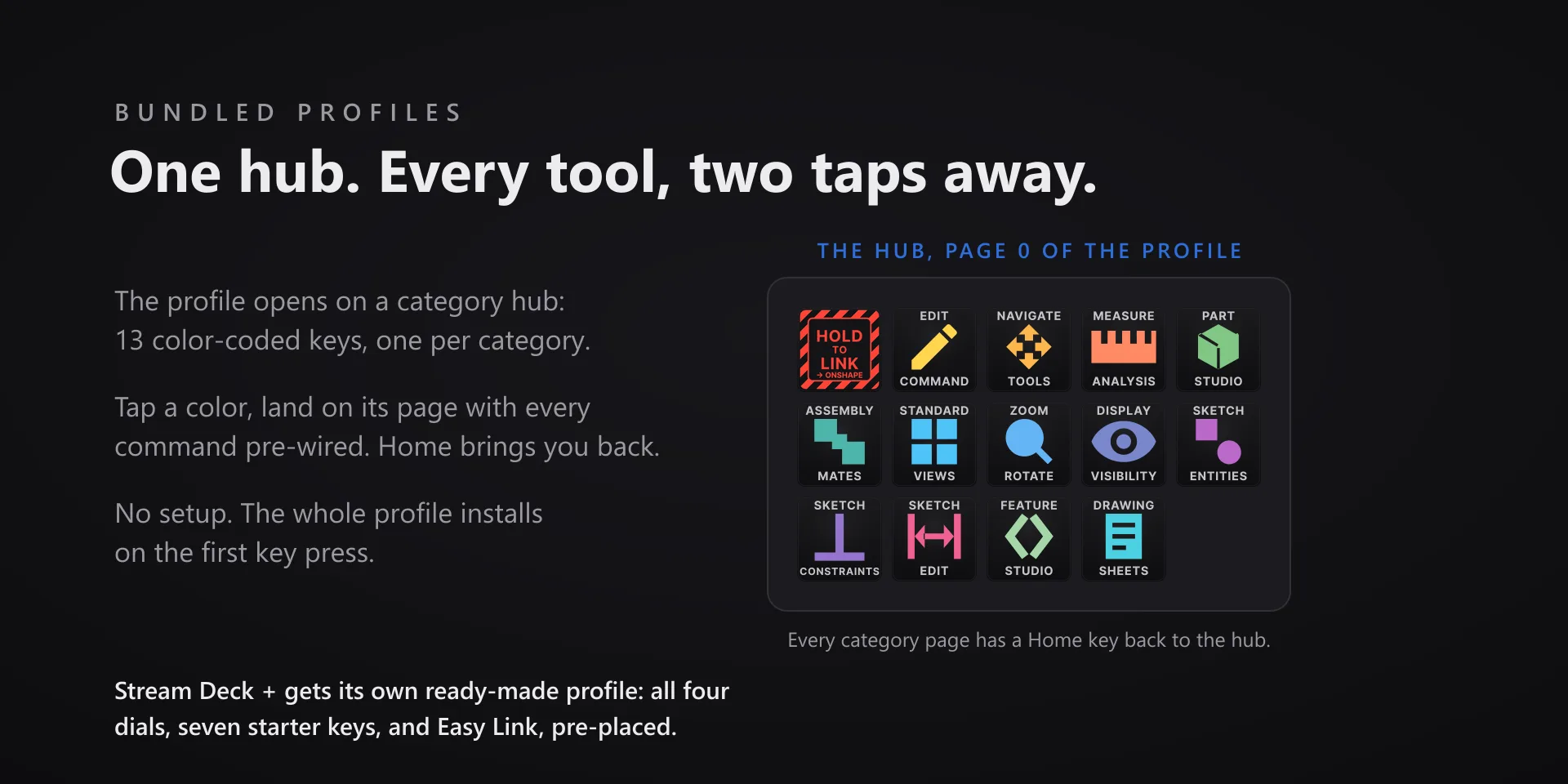

2bundled profiles

Download Now

On the Elgato Marketplace

What it does

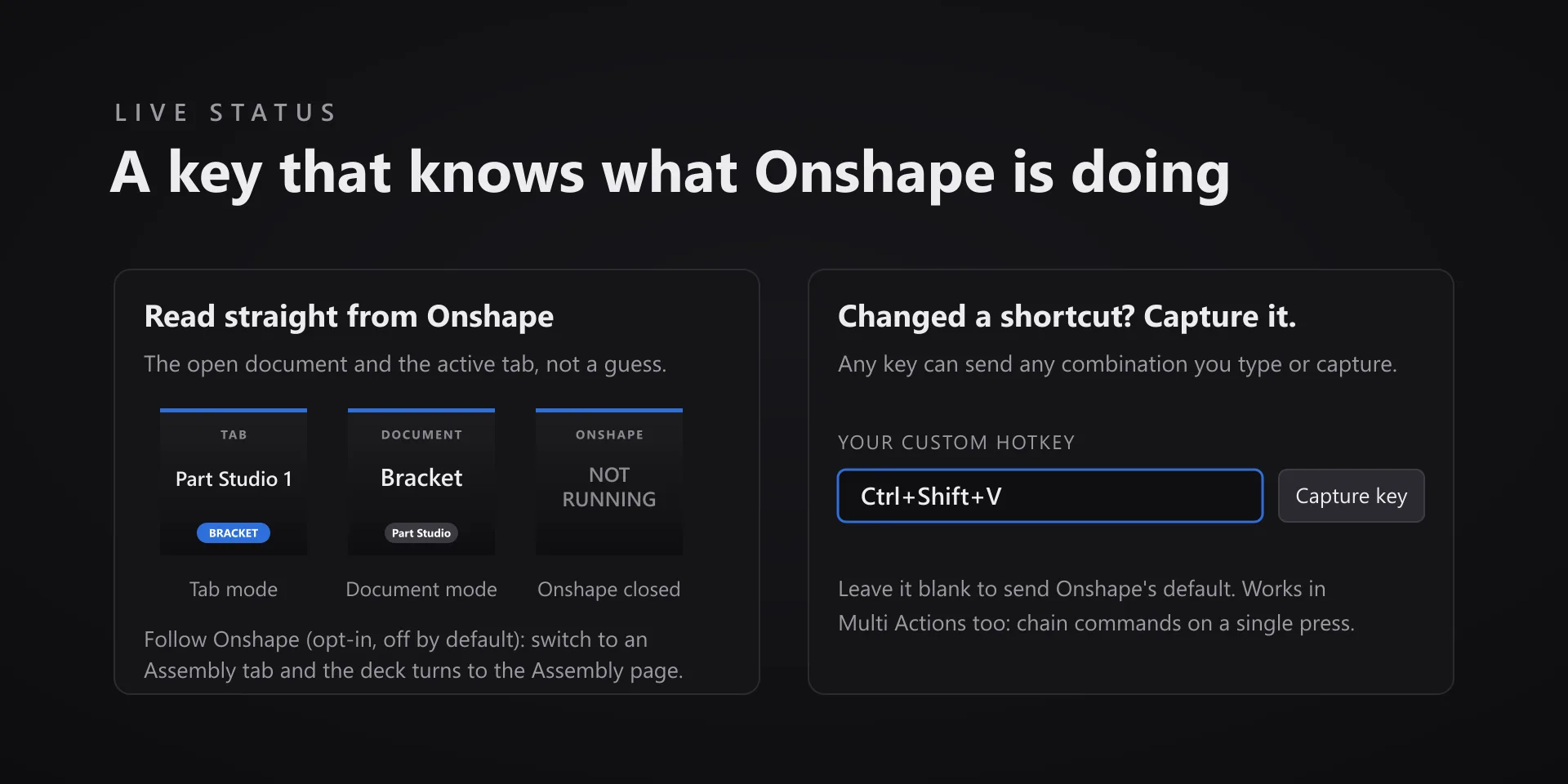

A Status key that identifies Onshape by page address, so it keeps working in a PWA window with no address bar.
Covers sketching, part studios, assemblies, and drawings.

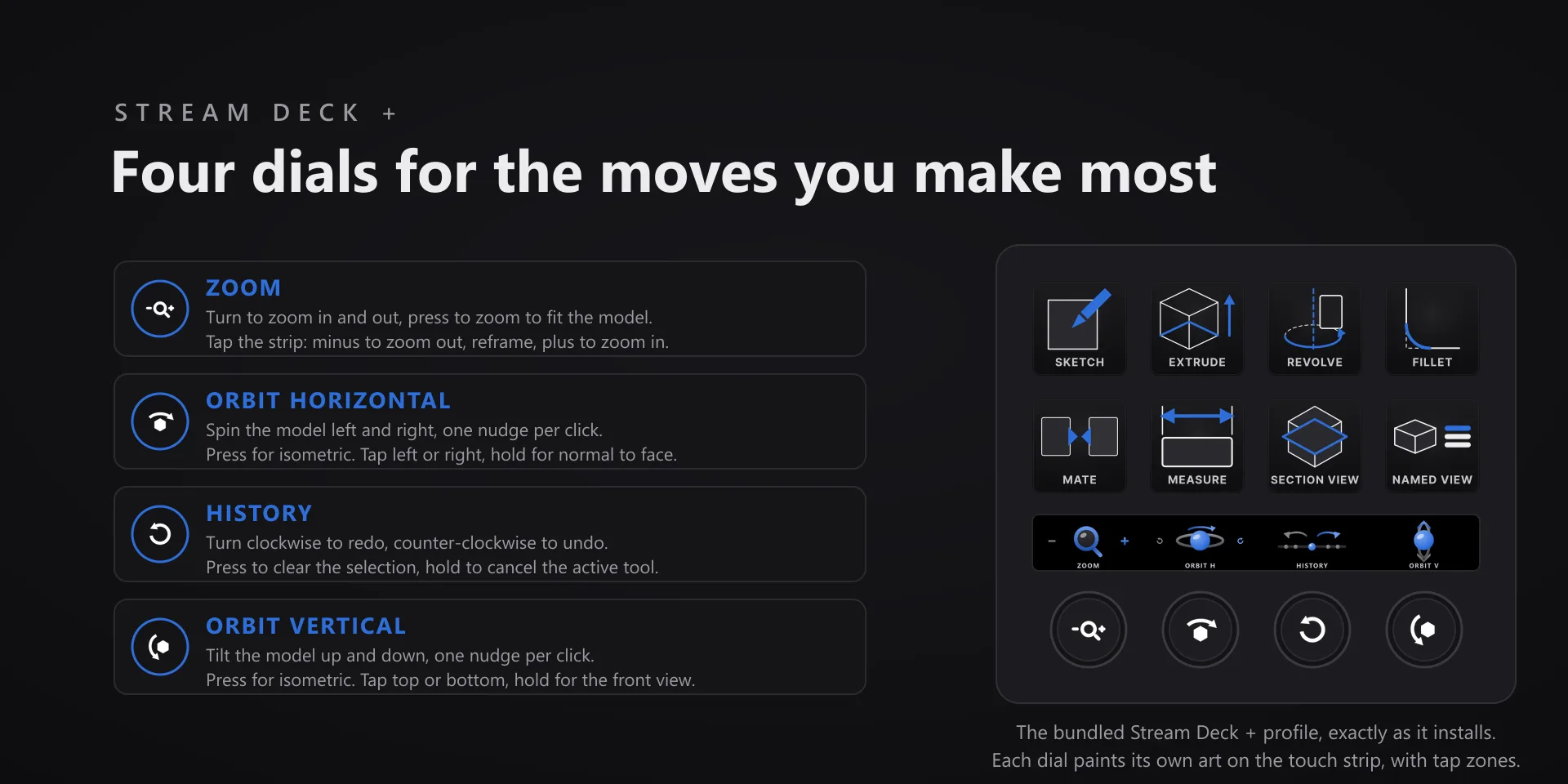

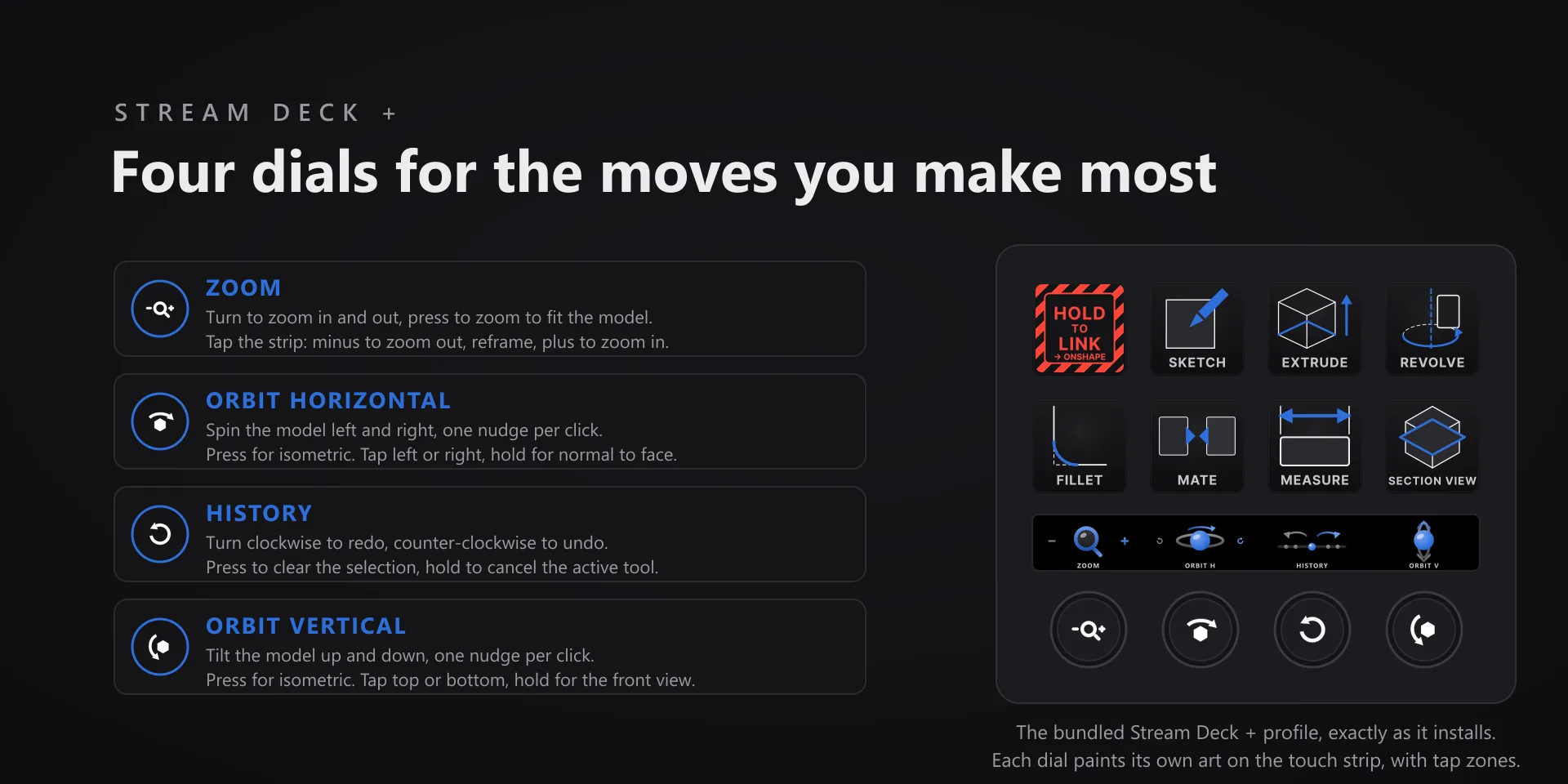

Dials for the moves you repeat, each with its own touch-strip art.

What you need

Windows 10 or later, Stream Deck software 6.9 or newer, and Onshape in a Chromium-based browser or installed as a PWA.

Download Now See all 21 plugins

Support

Good to know

Onshape runs in a Chromium browser (Chrome, Edge) or as an installed PWA. That window must be focused when you press, and the model area needs a click first so keystrokes reach Onshape instead of the page.
Two keys ship without a pre-assigned shortcut on purpose: Feature Studio Commit and the Drawing sheet menu both default to Ctrl+S, which the browser takes for Save Page first. Rebind them in Onshape, then capture the new combination on the key.
The Status key identifies Onshape by page address, so it keeps working in a PWA window with no address bar.

True of every plugin we make

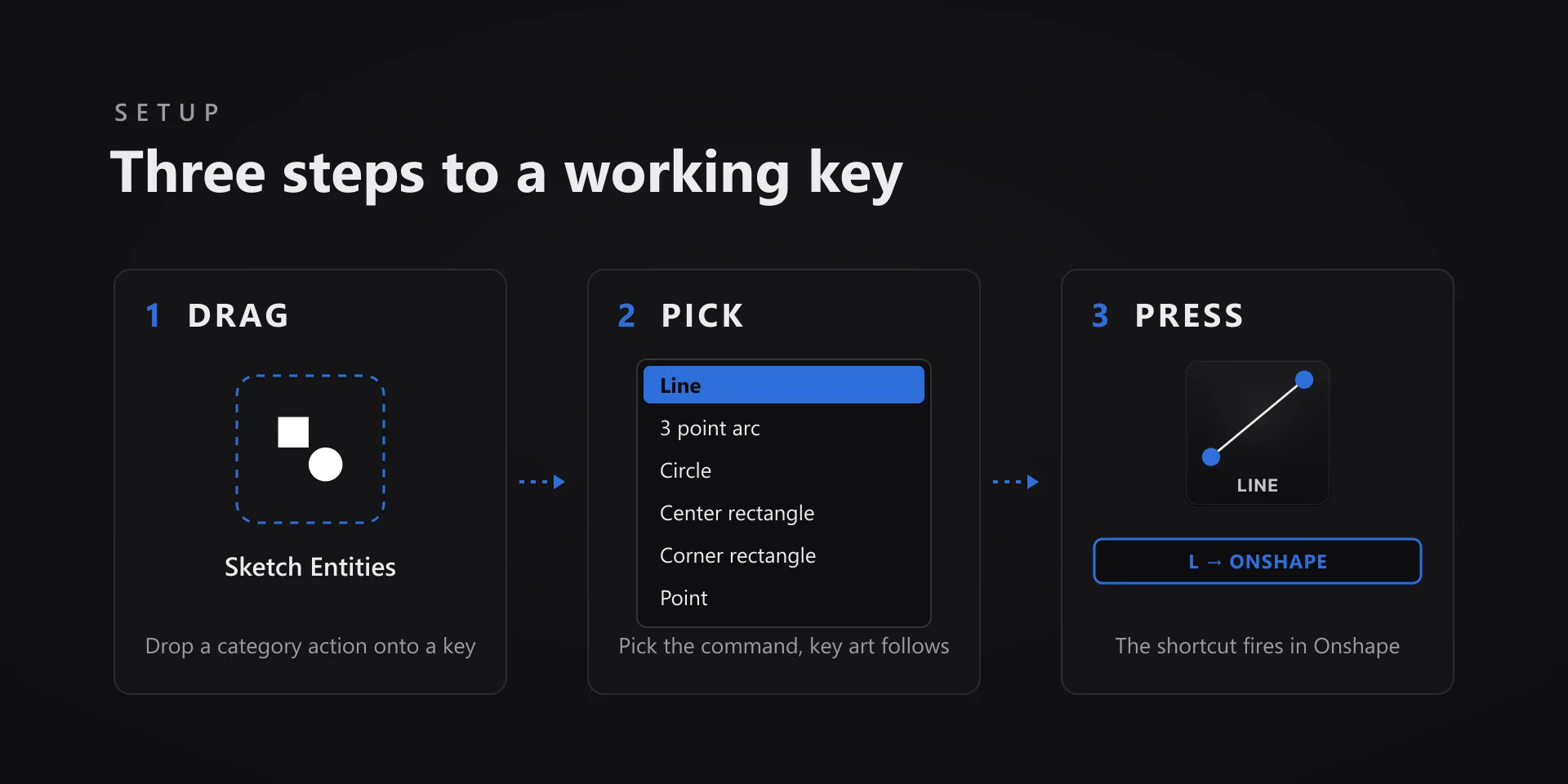

Every key ships with the app's stock default shortcut, and every key is remappable. Type your combination into the property inspector or click Capture and press it once.
Keystrokes go to the active window. The plugin never steals focus or targets a window, so keep the target app in front when you press.
Every command has its own drawn key art, so the deck reads at a glance instead of listing shortcuts.

Read the full quick fixes, or see this plugin on the support hub.

Still stuck? Email [email protected] with the plugin name, your Stream Deck software version, and what you pressed versus what happened. A human answers.
